(1) Use:suitable for indoor multi-fiber tight-packed cables and 2.0/3.0 single-core optical cables
(2) Main technical parameters;
1. Maximum speed; 10---230rpm/min
2, tension adjustment range; 5---100N±2N RPN
3. Main motor power; 4KW geared motor + Yuanxin inverter control.
4. Rotation direction of the hinge; left/right rotation.
(3) Equipment structure;
1. The bracket is welded by square tube steel;
2. The main shaft is driven by the motor through the pulley and belt, and a support nozzle and
Assemble the eye mold.
3. The tension adopts 0.5KG miniature magnetic powder brake, which is connected with the pay-off shaft through a special structure,
Make the release tension of each tight-packed wire uniform;

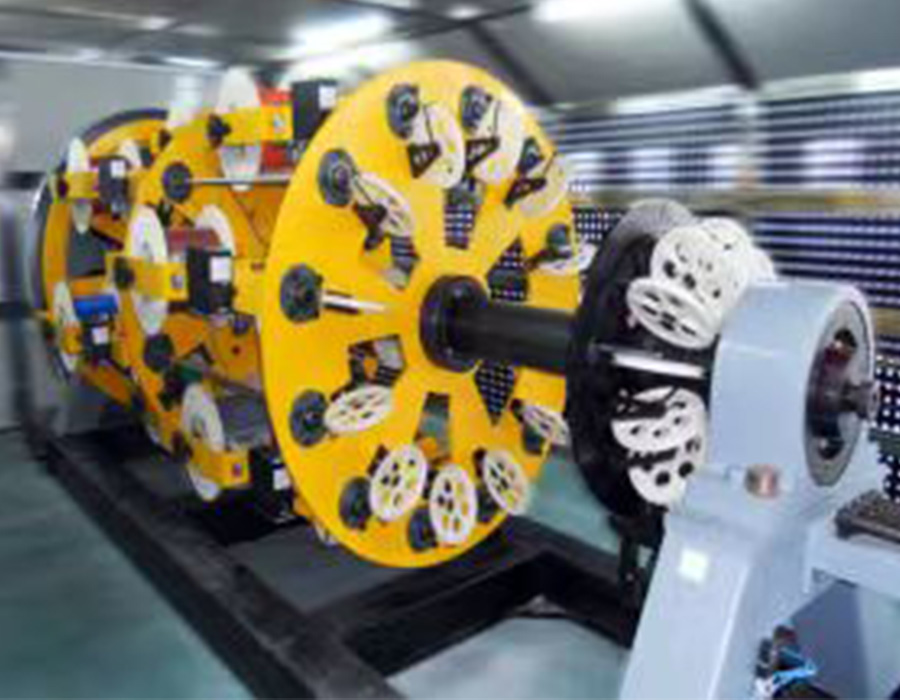

4. 24 tight-coated wire discs and guide wheels are fixed on both sides of the rotating large plate, and each has an electromagnetic clutch
adjust the pay-off tension through the adjustment knob on the operation panel;
All through the pulley or the ceramic wire mold to reach the forming mold, and the forming angle is conveniently adjusted by the moving mold base.
5. Pitch adjustment, using frequency converter control, the speed and pitch of the twisted body are infinitely adjustable online.
6. The cylinder cover is used to cover the door, which is safe and convenient.
(4) Electrical control;
1. Driven by a geared motor, braked by an air brake
2. The speed of the main motor is controlled by the frequency converter
3. Set up slow jog, easy to install when loading and unloading the coil
